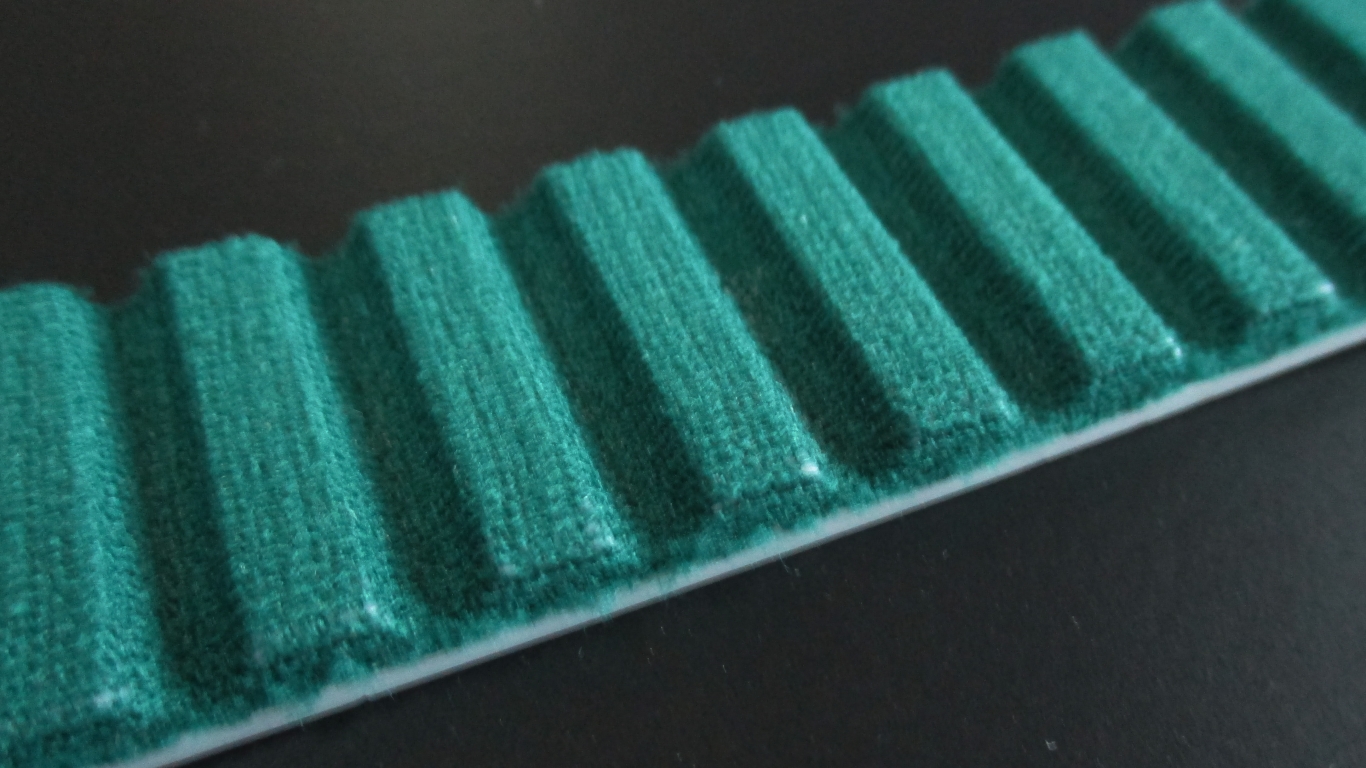

AT-10/AT-10G/AT-10P
Main industry segments :
Textiles, printing, materials handling, packaging, automation, postal, paper and wood
Belt applications :
General conveying systems, ceramic tile conveying, packaging machinery, hygienic paper production, pick-n-place
transports, small parts conveying, door and gate openers, XYZ axis drives, scanning and cutting machines,
windshield and window glass conveying, inserting systems, sheet folder conveying systems, electronic assembly
equipment, candy manufacturing, robotics, board and panel manufacturing, sorting
Description :
Trapezoid teeth with a 50° tooth angle are spaced on 10 mm centers.
White thermoplastic polyurethane with 92 Shore A provides wear resistance on the tooth side and protects the
steel tensile member. Our material also provides high lubricity, which yields low noise and vibration meshing in and
out of the drive pulley.
SKU : SKU00207
Category : Steel Cord
Datasheet :
SKW_AT10-S-01.pdf
Tags :
