Comber CM600

Speed

Up to 500 nips/min

Lap weight

Up to 80 g/m

Daily production

Up to 1,800 kg

  • Speed up to 500 nips/min
  • Machine suitable for all cotton types
  • Eight combing heads
  • Grooved feeding roller driven on both sides to guarantee maximum feeding uniformity

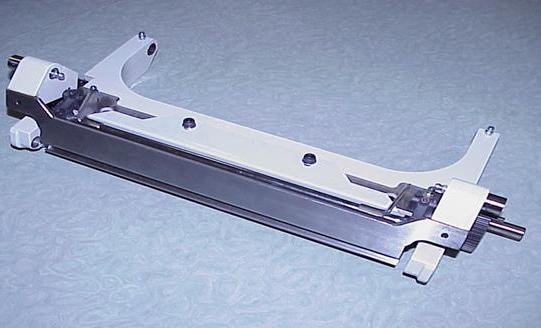

  • Nipper in ultra light materials
  • Circular comb with a 90° combing angle and 4 sectors with different pin densities
  • Constant narrow distance between jaws and circular comb thanks to standing-pendulum movement of the nipper
  • Wide variety of top comb needle densities: 23 - 26 - 29 - 32 needles/cm
  • Fluted biconical detaching rollers for perfect nipping on the entre width of the fringe
  • Stainless steel sliver tables to avoid false drafts

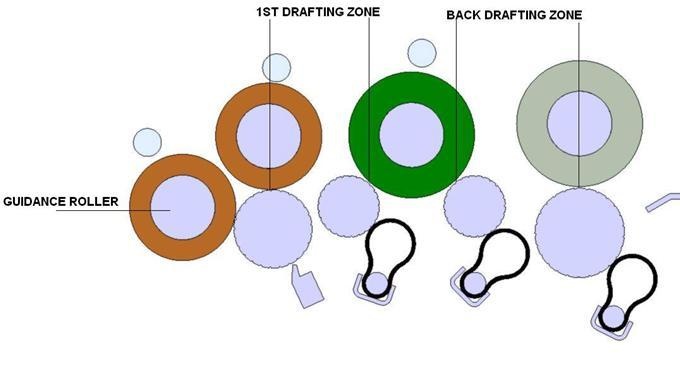

  • 3 over 4 pneumatic drafting system located on the coiler to avoid false drafts
  • Quality control located after the drafting unit to monitor sliver evenness
  • Cans dimensions: 24" x 48"
  • Automatic can change
  • High efficiency motors
  • Main motor driven by inverter:

acceleration, deceleration and machine speed set by HMI



Technical Data:

Circular comb

90°

Top comb

23-26-29-32 needles/cm

Can sizes

24" x 48"

Lap weight

up to 80 g/m

Feeding rate

4.71 - 5.24 - 5.89

Noil

8 to 25 %
