Roving Frame FT6-FT7 -- FT6D-FT7D

N. spindles

Up to 224 spindles

Doffing

Automatic / semiautomatic

Drive system

Independent drives

Spindles drive

Group drive

  • Up to 224 spindles with gauge between spindles of 110 mm and bobbin size of 6"x16" (FT6/FT6D)
  • Up to 192 spindles with gauge between spindles of 130 mm and bobbin size of 6"x16" or 7"x16" (FT7/FT7D)
  • Independent drives

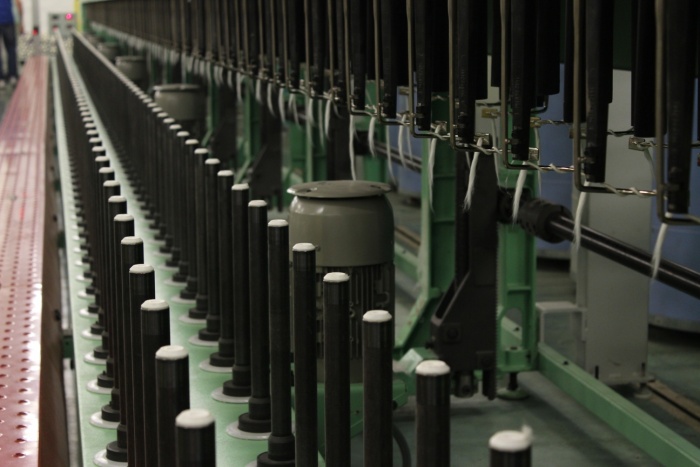

  • Group drive for spindles (one motor every 32 spindles for the FT6; one motor every 24 spindles for the FT7)
  • Flyers and spindles driven through timing belts to reduce noise and maintenance
  • Feeding creel with hexagonal rolls, positively driven to avoid false drafts

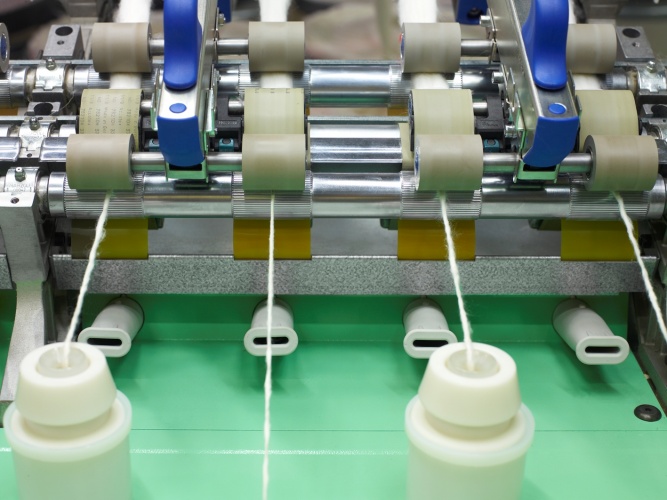

  • 3-over-3 (or 4 over 4) drafting system with pressure arms with pneumatic or spring load
  • Rubber cleaners for drafting cylinders

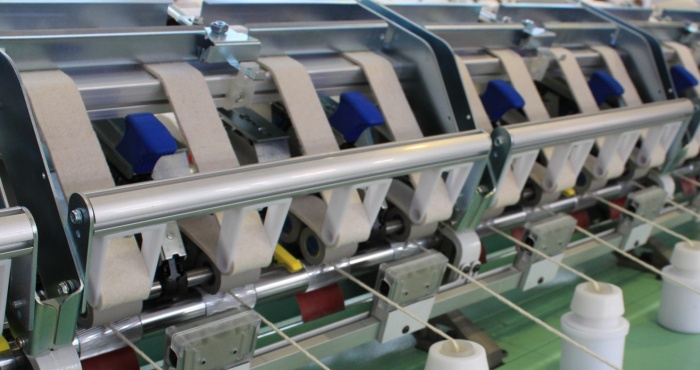

  • Rubber fins or rotating self-cleaning felt belts for cleaning of top rollers

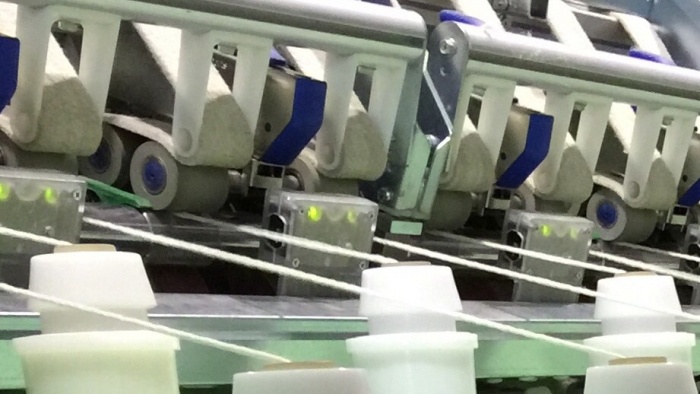

  • Single photocell or individual sensors for the control of roving breaks
  • Automatic control of roving tension
  • Semiautomatic or automatic doffing (3 minutes)
  • Automatic piecing of the roving after doff
  • Controlled stop of the machine in case of power failure
  • User-friendly touch screen interface
  • Connection to Marzoli YarNet production management software

Technical Data:

Material

Cotton, man-made fibers and blends up to 60 mm

Roving count range

 Ne 0.40 - 3.5

Roving twist range

 Tw/" 0.30 - 3.55

Draft

 4 - 20

FT6

 up to 224 spindles gauge 110 mm 6’’x16’’ bobbins

FT7

 up to 192 spindles gauge 130 mm 6’’ or 7’’x16’’ bobbins
